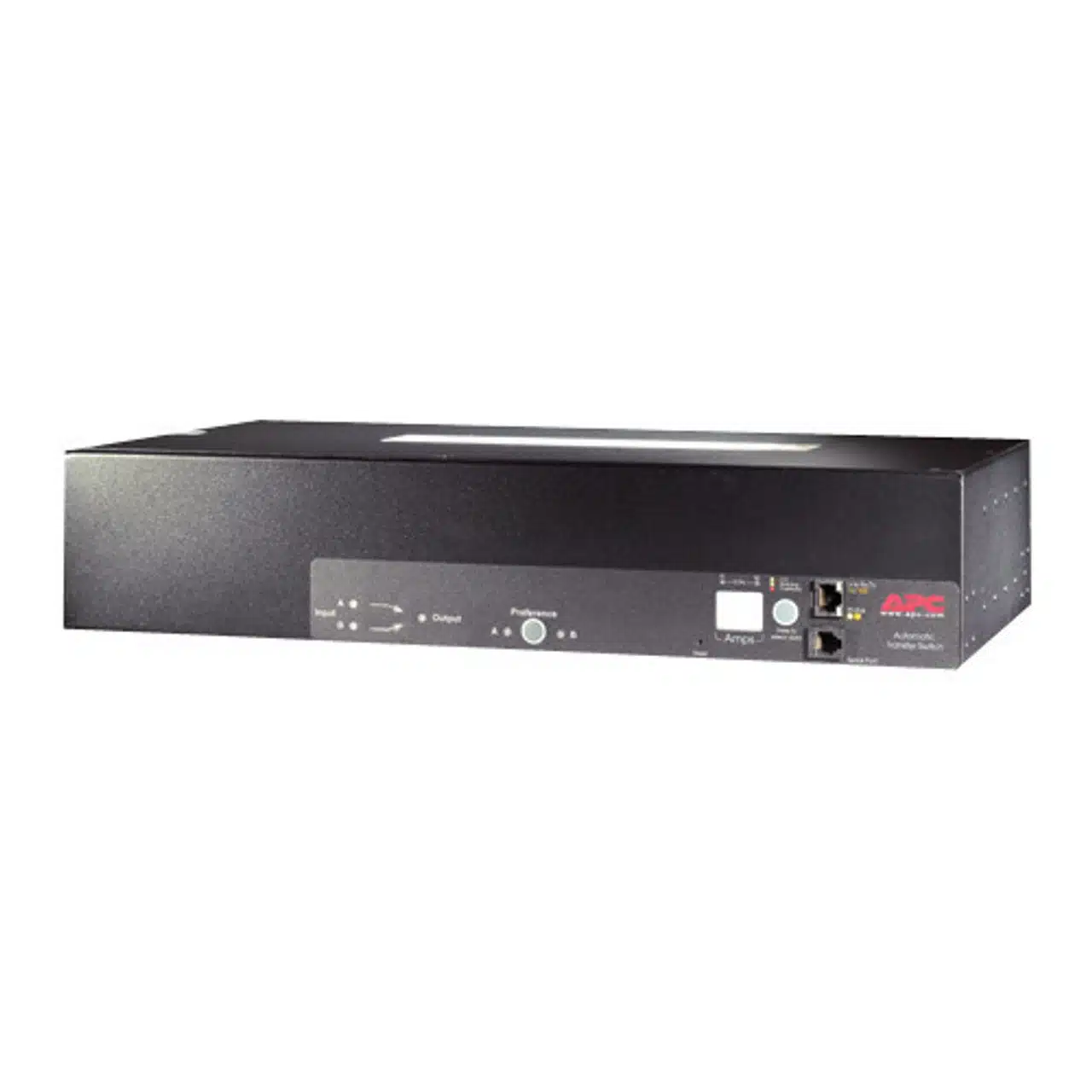

If the primary source becomes unavailable, the Rack ATS will seamlessly source power from the secondary source without interrupting critical loads. Networked units have built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.
| Product Type | Automatic Transfer Switches |
| Brand | APC |
| Country of Origin | USA |
| Rack Dimension | Maximum Height : 88mm , 8.8CM ; Maximum Width : 432mm , 43.2CM ; Maximum Depth : 236mm ,23.6CM ; Rack Height : 2U |
| Capacity | 32Amp |
| Input Connection | IEC 309 32A 2P+E |
| Output Connection | (16) IEC 320 C13 (Battery Backup), (2) IEC 320 C19 (Battery Backup) |
| Input Voltage | Nominal : 200V , 208V , 230V |
| Output Voltage | Nominal : 230V; Total Current Draw : 32Amp |
| Frequency | 50/60 Hz |
| Power Cable Length | Cord Length : 2.44meters ; Number of Power Cords : 2 |
| Max Input Current | 32A |
| Body Color | Black |
| Temperature | Operating Temperature : (-5 – 45 °C) ; Storage Temperature : (-25 – 65 °C) |
| Relative Humidity | Operating Relative Humidity : 5 – 95 % ; Storage Relative Humidity : 5 – 95 % |
| Approvals | EN 55022 Class A, FCC Part 15 Class A |
| Feature 01 | Rack-Mountable |
| Feature 02 | Local Current Monitoring Display |
| Feature 03 | Information Displays |
| Feature 04 | Wide range of input and output connections |
| Feature 05 | Transfer time <10ms |
| Feature 06 | Dual Input Power Sources |
| Feature 07 | Network Management Capabilities |
| Feature 08 | Color LCD display |
| Weight | 6.86KG |
| Warranty | 1 year |
